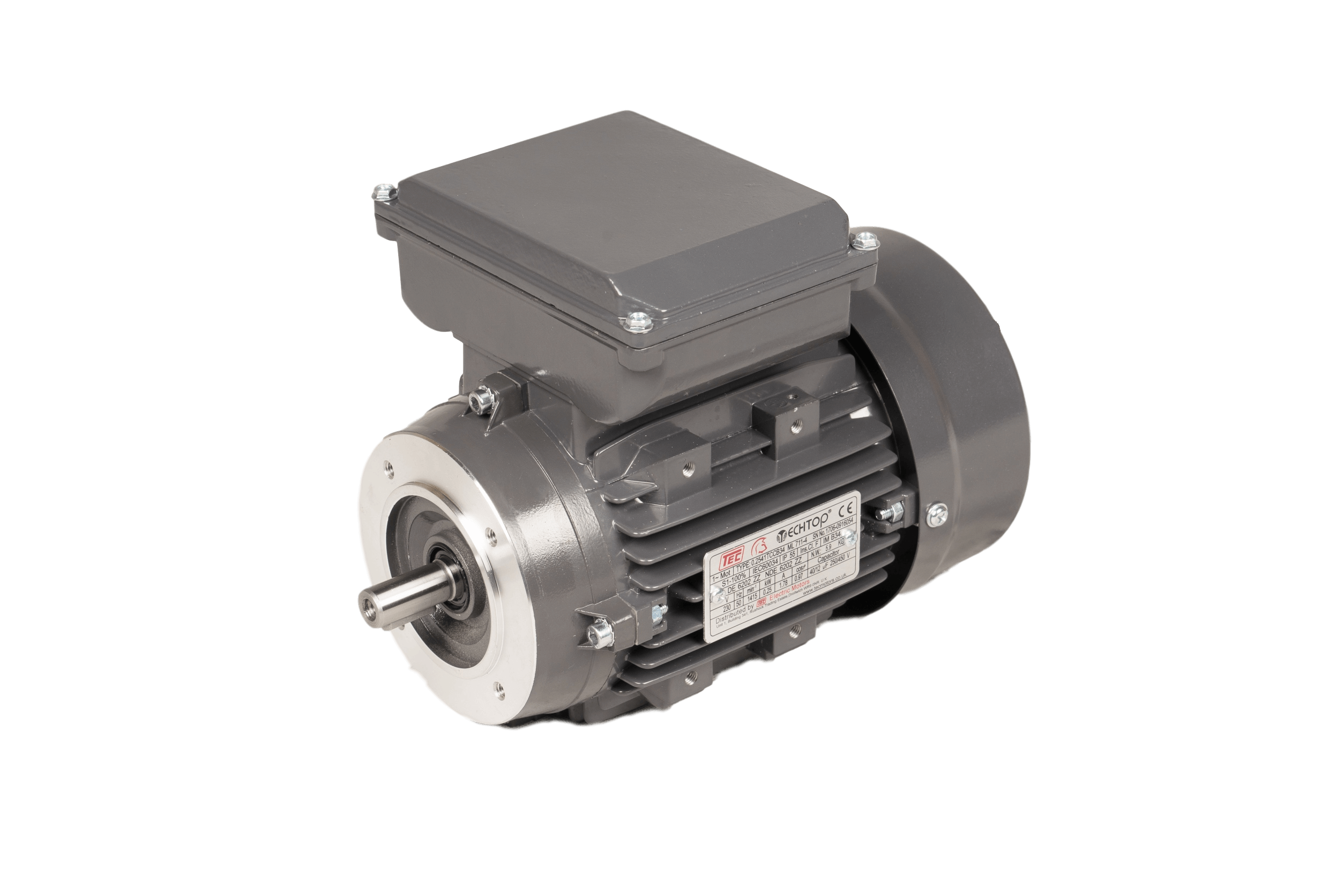

TEC Single Phase Electric Motor, 1.1KW, (1.1/2HP), Flange Mounted(B14), 1500rpm(4 pole), IE1 efficiency, 90S Frame, Aluminium Body

2 In stock - FREE next working day delivery available

Add to basket

£163.63(ex VAT)

FREE delivery for orders over £25.00

Product Information

Attribute Value
KW: 1.1
HP: 1.1/2
Frame: 90
Mount: Flange B14
Material: Aluminium
Input: Single Phase
Output Speed: 1500
Shaft Diameter: 24
Shaft Length: 50
Part Number: 1.141TECCB14
Product Group: Electric Motors
Brand Label: TEC
m: 115
n: 95
p: 140
t: 3
s: M8
efficiency: IE1

Product Description

This highly AC efficienct electric motor has a power rating of 1.1kW, manufactured by TEC Electric Motors and has an output speed of 1500rpm. Note: 1500rpm is the standard speed of the motor. The output speed is dictated by the Hz frequency and therefore this motor will also be appropriate to use if your output speed is 1375rpm, 1400rpm, 1425rpm or 1450rpm etc. This unit can be described as a 1.1kW, (1.1/2HP,) 1500rpm, Single Phase,IE1, Flange mounted (B14), 90S Frame in a Aluminium Body. This unit has a net weight of 13.8Kg. The alternative reference is 1.141TCCB14. If you require additional information please contact Sales on 01952 676925.

Product Tech Sheet
