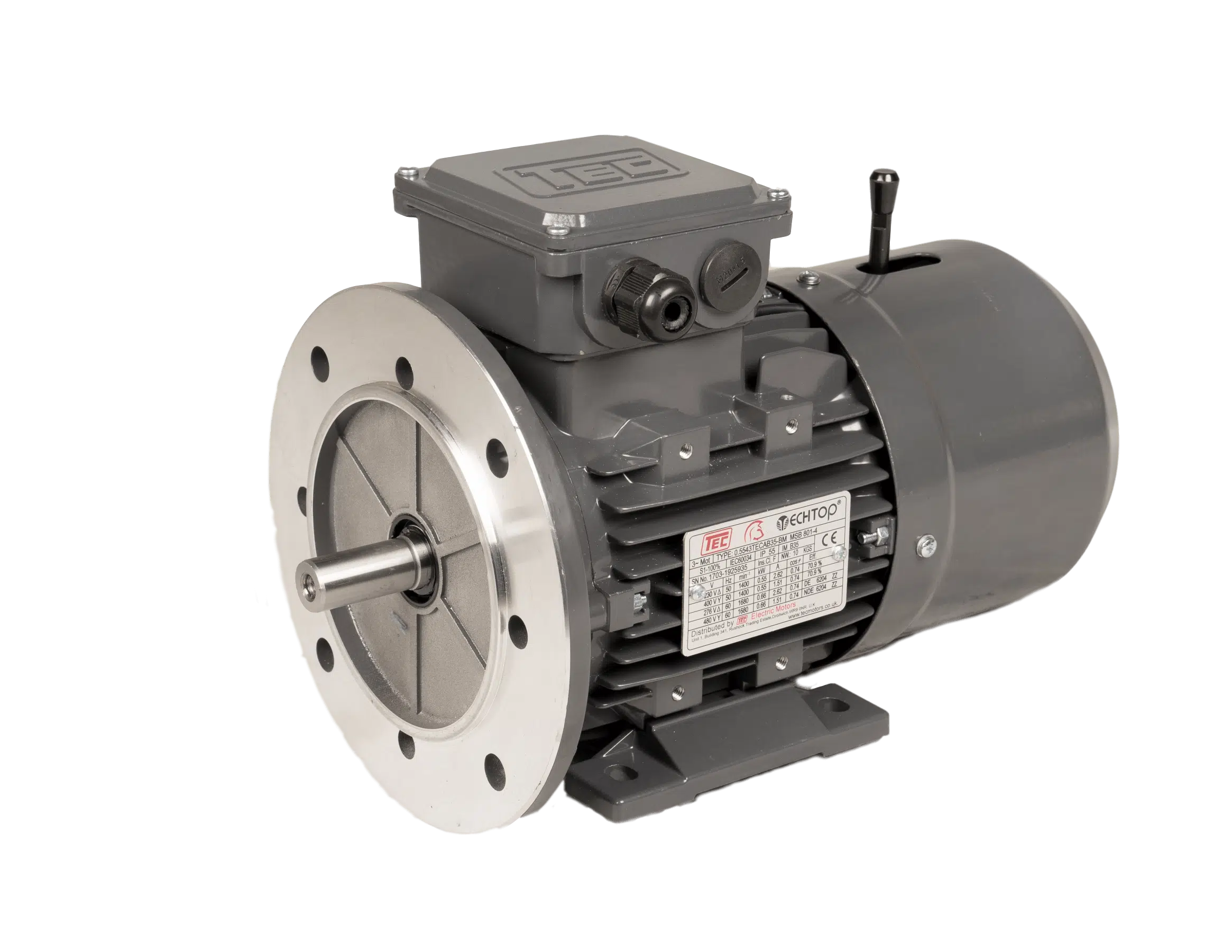

TEC Three Phase Electric Brake Motor, 0.18KW, (1/4HP), Flange Mounted(B35), 1500rpm(4 pole), IE1 efficiency, 63 Frame, Aluminium Body

2 In stock - FREE next working day delivery available

Add to basket

£212.57(ex VAT)

FREE delivery for orders over £25.00

Product Information

Attribute Value
KW: 0.18
HP: 1/4
Frame: 63
Mount: Foot & Flange B35
Material: Aluminium
Input: Three Phase
Output Speed: 1500
Shaft Diameter: φ11
Shaft Length: 23
Part Number: 0.1843TECAB35-BM
Product Group: Electric Brake Motors
Brand Label: TEC
a: 100
b: 80
c: 40
m: φ115
n: φ95
p: φ140
t: 3
s: φ10
efficiency: IE1

Product Description

This highly AC efficienct electric brake motor has a power rating of 0.18kW, manufactured by TEC Electric Motors and has an output speed of 1500rpm. Note: 1500rpm is the standard speed of the motor. The output speed is dictated by the Hz frequency and therefore this motor will also be appropriate to use if your output speed is 1375rpm, 1400rpm, 1425rpm or 1450rpm etc. This unit can be described as a 0.18kW, (1/4HP,) 1500rpm, Three Phase,IE1, Flange mounted (B35), 63 Frame in a Aluminium Body. The Brake Torque of 3 Nm is set and cannot be changed. This unit is supplied with a 205 Volt DC and Full Wave rectifier. This unit has a net weight of 4.2Kg. The alternative reference is 0.1843TECAB35 – BM. If you require additional information please contact Sales on 01952 676925.
